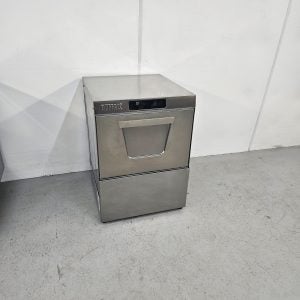

A compact undercounter dishwasher
Compact, front-loading commercial dishwasher with a digital display, three wash programs and full WRAS compliance for effortless and consistently clean results. The D400DUO is an easy to operate, under counter dishwasher with a 400 x 400mm basket that holds nine full-sized plates.
It features three wash cycles light (2min), standard (3min) and intensive (5min) – ensuring that it is optimised for cleaning some of the toughest warewashing requirements.
The Duo range of products all come with drain pumps, rinse booster pumps, built in chemical dispensers and full double skinned construction ensuring they meet all installation regulations and requirements.
Dimensions
Width: 450 mm
Height: 760 mm
Depth: 517 mm
Door Depth – Open: 865 mm
Basket Size: 400 x 400 mm
Rack Size: 400 x 400 mm
Clear entry height: 311 mm
Performance
Theoretical max racks per hour: 30
Plates per rack : 9
Number of wash programmes: 3
Duration of wash programmes: 2, 3 & 5 min
Plates per hour: 270
Wash tank element: 2 kW
Rinse tank element: 2.6 kW
Wash tank capacity: 9.77 Litres
Rinse tank capacity: 6.5 Litres
Rinse water consumption at 3 bar: 3 Litres
Wash tank temperature: 55 °C
Rinse tank temperature: 82 °C
Wash pump power: 0.25 kW
Rinse pump power: 0.1 kW
Rinse booster pump: included
Water softener: optional
Hydraulic Specifications
Water supply connection: G3/4″ (3/4″Bsp)
Minimum allowed supply water pressure: 0.5 bar
Required water flow rate: 11L/min
Minimum incoming water temperature: 4 °C
Maximum incoming water temperature: 55°C
Gravity drain height (from machine base): 40mm
Pumped drain height (from machine base): 540mm
Drain Size: o40mm
Price:
£995.00 + VAT
Condition:
B Grade - New without box, Ex display, May have cosmetic damage
Warranty:
3 Months Parts & 3 Months Labour Warranty
Connection Type:
Standard 3 Pin Plug
Dimensions:
45W x 52D x 76H cm
Delivery:
From £45.00 (please note this is restricted to certain postcodes. Please call for more information)
